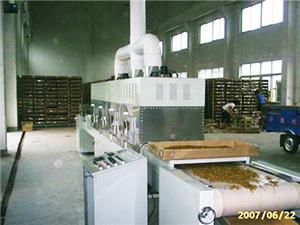

RD—20HTMicrowave drying and sterilizing device of Tenebrio molitor

　　Main technical parameters:

　　○1Product model：RD—20HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤30KVA

　　○5Microwave output power：≤20KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：12000×980×1750 mm

　　○7Inlet and outlet height：60mm

　　○8Conveyor width：650mm

　　○9transmission speed：0.5～5m/min（frequency control）

　　○10Water efficiency: about 20 kg per hour

　　○11Hourly bactericidal treatment：200Kg-330Kg

　　○12Control: can add PCL, man-machine interface control, temperature control, monitoring device

　　○13Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)
　　Accord with national GB5226 electrical safety standard．
　　Tenebrio molitor, also known as mealworms, its protein content is the highest in all kinds of live animal protein (named as the first foreign bread additive). Molitor as a species in nature, in insect taxonomy belonging to Coleoptera, Carabidae tenebrionis, a genus. Powder has fast growth, propagation coefficient higher. The main food for wheat bran, straw bran powder and waste vegetable. Now known around the world more than 180 kinds of insects, Chinese has known 330 thousand kinds; for the development and utilization of insect resources in the world have started to strengthen work in this area, and made many achievements in Mexico, France, Australia, New Zealand and other countries the family dinner table, "the insect food" is very common, Britain, West Germany some developers have insect food development and production of dozens of "insect drinks". At present our country in Tenebrio molitor Development Research．
　　Tenebrio feed do not consume food, and the animal feed cannot be transformed into high quality protein feed. People in this small livestock breeding Tenebrio molitor as a springboard, and raising all kinds of livestock and poultry and a variety of economic animal. Through this Tenebrio intermediate links, to solve the long period of human and animal food can not solve the problem. The traditional "individual single ring type agricultural production mode into several polycyclic mode of agricultural production. The agricultural production to form the industrial chain, opened up a new road for the industrialization of agriculture. Large area promotion, can become a new industry to increase employment opportunities. Tenebrio breeding technology has strong adaptability, easy to grasp, factory farming and breeding can be dispersed that is suitable for decentralized farming, especially suitable for centralized processing. Take the company + base + farmers; the mode of operation, the scale of the development area easy success, can A city, a county agricultural industrialization leading to breeding projects. For example, each producing 5 tons of goods "can increase 3 jobs, the formation of industry can effectively alleviate the employment pressure in rural and urban areas. This project not only has significant economic benefits, but also has significant social benefits.
　　By analysis of Tenebrio molitor manure; nitrogen containing 3.37% phosphorus, 1.04%, and zinc, boron, manganese, iron, magnesium, calcium, copper and seven kinds of trace elements. Both yellow mealworm dung good organic fertilizer, can be used as forage feeding livestock. Bio organic fertilizer on the insects as the main raw material can not only gain., increase crop yield, improve the quality of agricultural products, but also reduce the cost of agricultural production, improve soil structure, improve agricultural ecological environment, promote the sustainable development of planting industry. The real supply of products of bio organic manure is not currently on the market, and there is no stable problem, can not meet the high demand of agricultural production. Therefore, this project to bio frass as the main raw material for the production of organic fertilizer, with good market prospects. Exuvium; also contains a high protein, trace elements and good forage feeding poultry chitin, yellow Insect powder is high protein feed and feed additives is the most ideal precious carnivorous animal and various fish. The protein content of up to 60%, and is rich in amino acids. Can be used for the tiger, leopard cat, shrimp, abalone and various fish feeding. The process is YISHION natural Tenebrio molitor as raw materials undergo a rigorous complicated. Sterilization and baking processed. Often feeding growth and enhance animal disease resistance can promote the normal development of the animal.
