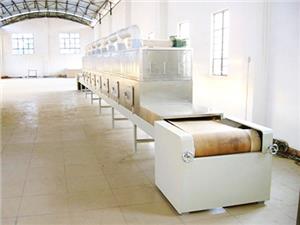

RD—40HTMicrowave cocoon drying equipment

　　Main technical parameters:

　　○1Product model：RD—40HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤60KVA

　　○5Microwave output power：≤40KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：12600×1140×1750 mm

　　○7Inlet and outlet height：60mm

　　○8Conveyor width：650mm

　　○9transmission speed：0.5～5m/min（frequency control）

　　○10Water efficiency: about 40 kg per hour

　　○11Hourly bactericidal treatment：400Kg-600Kg

　　○12Control: can add PCL, man-machine interface control, temperature control, monitoring device

　　○13Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)
　　Accord with national GB5226 electrical safety standard
　　Microwave is a kind of cocoon cocoon drying technology, compared with the traditional range of cocoon drying, has the following advantages: one is the microwave directly to the high water content of silkworm cocoon layer instead, and uniformly heated, to provide for the preservation of cocoon quality assurance. The identification results show that the index of silk, the silk cocoon microwave drying were higher than those of conventional drying cocoon, the cocoon car rate increased by 3.58%, reelability rate increased by 7.15%, the purity increased by 1 percentage points. Thus, the cocoon cocoon drying by microwave cocoon drying is obviously superior to the traditional application of microwave drying technology. The key is to prevent the silkworm cocoon spray burst pollution of cocoon layer, microwave cocoon drying machine produced by our company has to solve the technical problems. The advantages of the microwave drying cocoon is two short drying time. The one-time cocoon drying process of microwave cocoon drying machine, the drying time is only 25min If, by two, drying method, drying head is 14min, two drying 9min45s, only about 23min45s, for the use of the cocoon cocoon drying time required for 1/14-1/13. third, high production efficiency, reduce the cocoon drying facilities. Because the microwave cocoon drying and continuous production can be realized once, thereby eliminating the need for loading, unloading cocoon other processes, reducing labor, reduce labor intensity; while saving cold cocoon cocoon cocoon shed, baskets and other facilities and equipment. By fourth, the traditional coal cocoon cocoon drying, instead of microwave cocoon drying, improving the working environment, no pollution. Fifth, microwave drying equipment is easy to move or disassembly, this solves a cocoon cocoon station built, no cocoon cocoon waste. The microwave cocoon drying machine of a machine, but also for wood drying sterilization of food and other agricultural products. Avoid cocoon baking equipment idle. Sixth, microwave drying equipment are available with computer control system for drying In order to prevent the cocoon automation and human error caused by failure of cocoon quality possible. Seventh, the cost of investment and operation and common coal stove microwave cocoon drying machine, but high output benefits. Microwave drying out of the cocoon cocoon drying than coal stove 7%, according to the current valuation methods of Mulberry Cocoons Ganjian, per quintal higher than 300 yuan (3 yuan / kg), fresh cocoon value 1.2 yuan / kg. If the investment of a 40 kW microwave cocoon, and coal stove than an increase of more than ten million profit.
