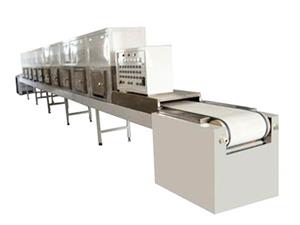

RD—30HTBio fertilizer microwave drying equipment

　　Main technical parameters:

　　○1Product model：RD—30HT

　　○2Power input： Three-phase380±10% ,50HZ

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤45KVA

　　○5Microwave output power：≤30KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：12600×845×1800 mm

　　○7Inlet and outlet height：50mm

　　○8Conveyor width：550mm

　　○9Drying efficiency: 30Kg per hour

　　○10Hourly bactericidal treatment：300Kg-450Kg

　　○11Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)
　　Comply with GB 5226 electrical safety standard

　　○12work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Microwave drying sterilization equipment is widely used in biological fertilizer, chemical fertilizer, wooddryingandsterilization humic acid foliar fertilizer; dry sterilization; curing liquid fertilizer and sterilization.
　　The development of microbial fertilizer is not only an important means for the development of eco agriculture and agricultural development in China and its effect of the only way which must be passed, diversity, increase yield and improve the quality of the products for home, soil improvement, disease prevention, disease resistance, reducing cost, saving capacity, economic benefits and a series of advantages, will become increasingly attracted people"s attention but in the process of production of microbial fertilizer, harmful content has been about the quality of the product, the effect of microwave equipment using microwave ultra high frequency electric field, to sterilize microbial fertilizer, is a very big leap.
