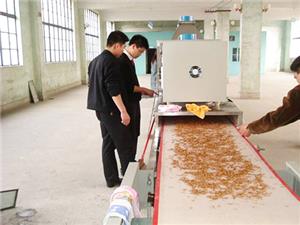

RD-20HTFish bait and microwave puffing equipment Titian

　　Main technical parameters:

　　○1Product model：RD-20HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3Rated input apparent power：≤30KVA

　　○4Output microwave power：≤20KW（Adjustable power）

　　○5Overall dimensions (L * w * h)：11500×980×1850 mm

　　○6Inlet and outlet height：55mm

　　○7Conveyor width：660mm

　　○8Transfer speed：0.5~5m/min

　　○9Efficiency: 20 kg per hour

　　○10Hourly sterilization： 180kg-350kg

　　○11Control: ordinary button, can also be added to the infrared temperature control, PLC programming control device

　　○12Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Comply with GMP equipment certification standards

　　○13work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Applicable to all kinds of bait, such as the temptation of the red crucian carp, bream King grass, fragrant powder, drawing powder, explosive bait．
　　Process Description: ingredient - mixing - microwave drying (mix formulation material -- Titian / parts manufacturers) - cooling - packaging．
　　Characteristics of microwave equipment:
　　1, selective heating
　　2, energy saving and high efficiency
　　3, the time is short, the efficiency is high
　　4, easy to control, advanced technology
　　5, the fragrance of the product is rich, uniform, bright color
　　6, low temperature sterilization to maintain nutrients and traditional flavor
