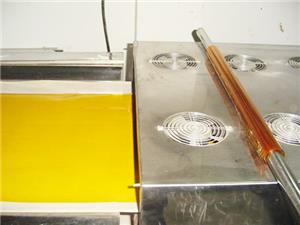

RD—10HTMicrowave bonding apparatus for glue

　　Main technical parameters:

　　○1Product model：RD—10HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤15KVA

　　○5Output microwave power：≤10KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：7300×980×1750 mm

　　○7Inlet and outlet height：50mm

　　○8Conveyor width：650mm

　　○9Rotary speed：0.5～5m/min

　　○10Water efficiency: about 10 kg per hour

　　○11Control: ordinary button type, can add PCL, man-machine interface control, temperature control, monitoring device

　　○12Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Accord with national GB5226 electrical safety standard

　　○13work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Because the microwave is quick heating, uniform heating, energy efficient, safe and continuous production and greatly improving working conditions, widely used in wood processing and drying, bending material, glue, resin etc.
　　Our production of the series of varieties in the field of microwave equipment. The products covered 32 provinces and autonomous regions, and exported to overseas countries and regions. And our commitment to the microwave technology in food, medicine, wood, chemical fiber, glass fiber, petroleum, chemical, rubber, ceramics, paper, food, dried fruit. Beverage, seafood, finance, environmental protection, production development and complete sets of equipment, textile and other fields, to fill the domestic blank.
