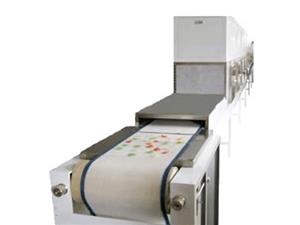

RD—30HTSeaweed microwave drying equipment

　　Main technical parameters:

　　○1Product model：RD—30HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤45KVA

　　○5Output microwave power：≤30KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：12500×980×1800 mm

　　○7Inlet and outlet height：60mm

　　○8Conveyor width：650mm

　　○9Rotary speed：0.5～5m/min

　　○10Water efficiency: about 30 kg per hour

　　○11Hourly volume：300Kg--450Kg

　　○12Control: ordinary button type, can add PCL, man-machine interface control, temperature control, monitoring device

　　○13Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Accord with national GB5226 electrical safety standard

　　○14work environment：－5~40℃，relative humidity≤80%

　　The transformation of traditional food processing technology at home and abroad for the food industry to develop a new way of using high technology. The application of microwave technology in poultry, seaweed, seaweed, aquatic products, meat processing will bring new business opportunities for businesses.
　　Microwave is a kind of high frequency electromagnetic wave, it has the media material, strong penetrability, and in the process of penetration of microwave energy into heat, so as to achieve the purpose of heating. Microwave heating with the traditional heating methods are completely different. It is prominent in the moment through the heated material, and heated at the same time, rapid heating, uniform; direct effect on the material, in addition to a small amount of transmission loss and other loss little, energy saving and high efficiency; it has the thermal effects and biological effects, can maintain the activity of low-temperature sterilization, and nutrient material; it occupies a small area, advanced technology, easy to control the automatic production can be realized; it is safe. No environmental pollution. Because the microwave energy has many advantages, so in the food, pharmaceutical, agricultural and sideline products, aquatic products, condiments, beverages and chemical processing, electronics, light industry and has broad application Prospect．
