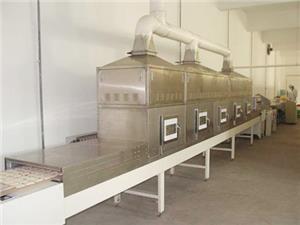

RD—16HTPharmaceutical drying sterilization equipment

　　Main technical parameters:

　　○1Product model：RD—16HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3Rated input apparent power：≤24KVA

　　○4Output microwave power：≤16KW（Adjustable power）

　　○5Overall dimensions (L * w * h)：10500×860×1850 mm

　　○6Inlet and outlet height：60mm

　　○7Conveyor width：540mm

　　○8Transfer speed：0.1～10m/min（frequency control）

　　○9Efficiency: 16 kg per hour

　　○10Hourly sterilization： 160kg-250kg

　　○11Control: PCL, man-machine interface control, with temperature control, monitoring device

　　○12Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Comply with GMP equipment certification standards
　　The microwave in the pharmaceutical industry is mainly used in Chinese herbal medicines (pills, water pills, water pills, powder), tablets, pills, oral liquid drying, sterilization, heating, extraction.
　　For a long time, the pharmaceutical industry in our country are using the traditional heating and drying, sterilization methods, such as the use of hot air drying, far infrared drug. With high temperature and high pressure, such as cobalt 60 irradiation sterilization. They are not only low thermal efficiency, long heating time, large area. Not conducive to environmental protection, at the same time, in the high temperature sterilization 120 centigrade. Time is 20~40 minutes. The potency of drugs and nutrients by certain degree. But the bad glass microwave drying sterilization, can give full play to the microwave drying, sterilization characteristics, can solve the disadvantages of the traditional heating. For example: with carefully designed pill microwave drying, sterilization equipment, processing of the pill is not cracking, good consistency. Keep the original resistance, greatly prolong the shelf life.
　　In recent years, microwave drying in medicine, sterilization, microwave extraction and development of the pharmaceutical quickly. At the same time, because the microwave vacuum break microwave vacuum sublimation freezing technology, micro purple sterilization machine and newly developed recently is the company"s new products, but also promoted the development of microwave in the pharmaceutical industry.
　　The transformation of traditional medicine industry with high technology at home and abroad for the pharmaceutical industry, will open up a new path. The application of microwave in medicine industry is the majority of manufacturers demand. But also the development of science and the progress of human society needs.
