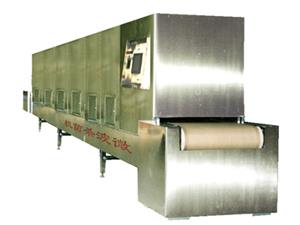

RD—30HTMicrowave pharmaceutical equipment

　　Main technical parameters:

　　○1Product model：RD—30HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤45KVA

　　○5Microwave output power：≤30KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：12200×980×1750 mm

　　○7Inlet and outlet height：60mm

　　○8Conveyor width：650mm

　　○9transmission speed：0.5～10m/min（frequency control）

　　○10Water efficiency: about 30 kg per hour

　　○11Hourly bactericidal treatment：300Kg-450Kg

　　○12Control: PCL, man-machine interface control, with temperature control, monitoring device

　　○13Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Accord with national GB5226 electrical safety standard

　　○14work environment：－5~40℃，relative humidity≤80%

　　The application of microwave energy application technology in the pharmaceutical industry mainly in the following aspects: powder, granular, flake, pellet, drying and sterilization of mucous pharmaceutical products, Chinese herbal medicine quick drying, insecticidal sterilization; Chinese medicine pills, potions, pills such as drying, sterilization; sterilization of oral liquid. For example, Chinese herbal medicine in the process of storage and transportation in order to prevent mildew or processing pretreatment, necessary drying treatment of them. With the traditional heating methods of different raw materials are dried, raw material and uneven heating, high energy consumption, long time, the drying effect is not ideal. And were treated with microwave, the material is directly absorbed microwave energy to achieve the purpose of heating, so the material be heated evenly, fast speed, short time medicine of high quality, low energy consumption and so on.
　　Mannitol is easy to agglomerate with conventional method, it has a long time, a large energy consumption, and the drying effect is not ideal, but it can not be agglomerated by microwave drying, fast, energy saving, water content can be dried to less than 1/1000
At present, our microwave technology has been applied in many pharmaceutical companies, such as Hainan Yangshengtang pharmaceutical company for sterilization of turtle powder, used for drying and sterilization in Gansu Cheezheng Tibetan pills in pharmaceutical, North China Pharmaceutical for medicinal powder drying sterilization, in Zhangjiajie for Chinese herbal medicine for microwave extraction, microwave vacuum drying of drugs in Jilin oral liquid for sterilization, in Guangzhou, in the Lanzhou traditional Chinese medicine factory, Beijing Xiang pharmaceutical and Zhongshan science Cordyceps group for drying and sterilization of Chinese herbal medicines have achieved good economic and social benefits.
　　Performance description:
　　Time is short, fast. Uniform heating, low temperature sterilization to maintain medicinal ingredients. Compared with the conventional thermal sterilization, disinfection and sterilization effect can be required at lower temperature and shorter time, bactericidal effect of various materials in general 3-5 minutes. Therefore, Chinese herbal medicine processed inner herbs the appearance quality and the color, taste, efficacy were not significantly affected. Energy saving and high efficiency, good working environment, compared with the far infrared heating can save 30% is easy to control, advanced technology. Compared with the conventional method, the equipment can be easy to use, no use of thermal inertia, flexible and convenient operation. The microwave power is adjustable. Also, the transmission speed is adjustable.
