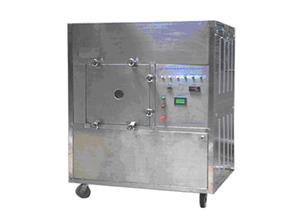

RD—10HZMicrowave vacuum low temperature drying equipment

　　Main technical parameters：

　　○1Product model：RD—10HZ

　　○2Power input: three phase380±10% ,50HZ

　　○3working frequency：2450MHz±50MHz

　　○4Rated input apparent power：≤15KVA

　　○5Microwave output power：≤10KW（Adjustable）

　　○6Water removal：≤10Kg/ｈ

　　○7Basket speed: 8 rpm /min

　　○8vacuum degree:-0.9MPa

　　○9Overall dimensions (L * w * h)： 1300×1200×1650mm

　　○10Cavity size： 720×720×800 mm

　　○11Microwave leakage: in line with national GB10436-89 standards(National standard≤5mw/cm2)

　　Comply with GMP equipment certification standards

　　○12work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas．
　　Vacuum microwave drying equipment is mainly used in high added value, and has heat sensitive agricultural products, health care products, food, medicine, and chemical raw materials such as dehydration, sterilization; low temperature concentration for chemical products, the removal of water of crystallization, enzyme drying; vacuum extraction of Chinese herbal medicine for scientific research; in the laboratory.
　　Microwave vacuum drying equipment in extending the shelf life of food, food preservation of the original flavor and nutrition, physiological activity and retention of raw materials, enhance the functional health care products, increase the added value of agricultural products and other aspects of the microwave vacuum drying technology has obvious advantages, one can effectively maintain the material shape, color, composition and nutrition the aroma unchanged, these characteristics, is particularly important for health products production; two is it can greatly save energy. In the material by freeze drying method, need to add heat of sublimation.
　　In vacuum condition, the vaporization temperature of water is low, the low temperature drying, good processing materials keep the original color, aroma, taste and nutrition, avoid the oxidation of active ingredients in the materials, products with good rehydration; internal penetration into the materials, rotary drive system material for rotary motion, so that the material is more uniform, dry more quickly, the operation cost is far lower than that of freeze drying and infrared drying, energy saving, sanitation and environmental protection; make full use of the microwave heating uniformity of material inside and outside temperature difference is small, both the use of vacuum drying, vacuum heat conduction and solves the difficult problem, greatly improves the work efficiency and drying the quality of the products.
　　The required drying time is very long, slow, high energy consumption, high processing cost. The use of microwave heating, can save energy, improve the heating and drying speed. This is because the microwave penetrating, in the object when heated, does not require any media, and can also heat the material inside and outside according to the domestic and foreign information, using microwave equipment on heating, the speed and efficiency of conventional heating method is 4 ~ 20 times.
　　Characteristics of microwave vacuum drying:
　　1, high efficiency compared with conventional drying technology can improve the working efficiency more than four times.2, uniform heating due to microwave heating is also heating material material inside and outside, inside and outside temperature difference is very small, not in the outside heating inconsistent with conventional heating, the drying quality is greatly improved.3, easy to control, convenient and continuous production and realize the automation, because microwave power can be adjusted quickly and no inertia, easy real-time control, easy to adjust the parameters and determine the.4, small volume, convenient installation and maintenance of.5, products of good quality compared with conventional method, greatly improve the.6 quality of processed products, in addition with microwave equipment effect of sterilization, disinfection, safety and hygiene products. Shelf life can be prolonged. From the characteristics described above, energy saving, consumption, improve product quality, safety and health, equipment investment cost aspects can be The economic and social benefits are obvious．
