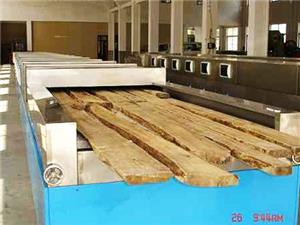

RD—50HTBamboo wood microwave drying insecticidal equipment

　　Main technical parameters：

　　○1Product model：RD—50HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤75KVA

　　○5Microwave output power：≤50KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：16400×1320×1700 mm

　　○7Inlet and outlet height：80mm

　　○8Conveyor width：1000mm

　　○9transmission speed：0.5～5m/min

　　○10Water efficiency: about 50 kg per hour

　　○11Hourly amount of insecticide：450Kg-650Kg

　　○12Control: ordinary button type, can add PCL, man-machine interface control, temperature control, monitoring device

　　○13Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Accord with national GB5226 electrical safety standard

　　○14work environment：－5~40℃，relative humidity≤80%

　　Bamboo and wood products to prevent drying insecticidal, wet material in use environment dry shrinkage and moth eaten. The traditional hot air drying kiln (furnace) is nothing more than a long time. Dry bamboo, wood has a longitudinal fiber structure, in conventional heating, wood wet material lateral thermal conductivity characteristics, to make the center to dry requires not only long, but also because of fiber structure and texture, an uneven heating in the drying process of material cracking, distortion, high rejection rate. Secondly, the traditional heating material in the water content below 10%, further drying of great difficulties, need to update the drying method.
　　The use of microwave heating characteristics, can be used for microwave drying of bamboo and wood products, to overcome the shortcomings of traditional heating and drying. In addition, the microwave drying and microwave on bamboo, wood borers and eggs are in strong killing effect. Therefore, microwave drying and killing a combination of the two methods is very ideal.
