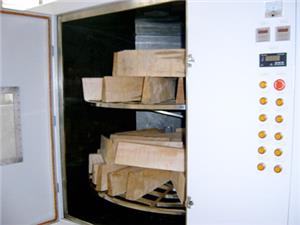

RD—12HFMicrowave oven for drying wood

　　Main technical parameters:

　　○1Product model：RD—12HF

　　○2Power input: three phase380±10% ,50HZ

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤18KVA

　　○5Output microwave power：≤12KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：1200×1150×1750 mm

　　○7Internal diameter：Φ900 mm （Dial two）

　　○8Rotary speed: 8 rpm/min

　　○9Drying efficiency: 12Kg per hour

　　○10Time controller, "hours, minutes, seconds" arbitrary adjustable

　　○11Microwave leakage: in line with national GB10436-89 standards(National standard≤5mw/cm2)

　　Comply with GB 5226 electrical safety standard

　　○12work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Wood microwave drying with uniform heating, fast drying, not out of shape, good quality, is conducive to a series of advantages of continuous and automatic production. The characteristics of wood microwave drying is not out of the ordinary heat surface was introduced, but the microwave material itself through the water by continuous and direct heating. Because the wood absorbs the moisture on the surface of the material therefore, the evaporation temperature of material is higher than that of the surface. The formation of outward pressure difference within the material, the surface moisture migration accelerated, so microwave wood drying speed than the convective drying speed of 20 - 30 times. Compared with the far infrared and vapor drying energy consumption reduced by more than 25%. Microwave drying can make the wood internal temperature more than 70 degrees, so the eggs in the material quickly to kill the parasite, moth, antimould. For various kinds of wood to take appropriate microwave heating speed In order to get the best results, the best process conditions can be obtained。
