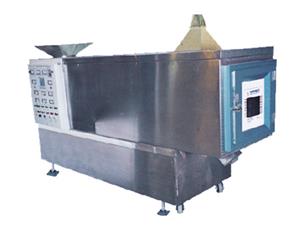

RD-10HPMicrowave drying machine

　　Main technical parameters：

　　○1Product model：RD-10HP

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3Rated input apparent power：≤15KVA

　　○4Output microwave power：≤10KW（Adjustable power）

　　○5Overall dimensions (L * w * h)：2300×860×1650 mm

　　○6Rotation speed: 10 weeks/min

　　○7Efficiency: 10 kg per hour

　　○8Hourly sterilization： 80kg-160kg

　　○9Control: ordinary button type, also can add infrared temperature control, PLC programming control device

　　○10Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　In line with the national GB16798-1997 food machinery safety and health standards

　　○11work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas．
　　Microwave drying and sterilizing function can make the material roller both the rotation and continuous work. The material can tumble in the equipment to improve the uniformity of microwave processing materials, ensure the quality of the product, and can make the process continuously to meet certain requirements. The yield of the rotary material cylinder is easy to change, a variety of optional machine processing or to adapt to the continuous gap. Switching equipment. With real-time monitoring of power control and temperature display process. In the discharge system is easy to operate.
　　This equipment can be widely used in the processing of materials, such as powder, granular, flake and other materials, food, western medicine, pharmaceutical intermediates, medicines and so on．
