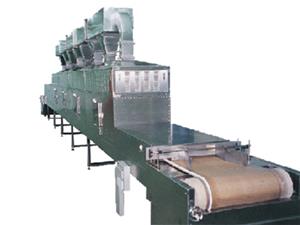

RD-15HTOral liquid heating sterilization equipment

　　Main technical parameters：

　　○1Product model：RD-15HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3Rated input apparent power：≤22KVA

　　○4Output microwave power：≤15KW（Adjustable power）

　　○5Overall dimensions (L * w * h)：9800×980×1850 mm

　　○6Inlet and outlet height：50mm

　　○7Conveyor width：630mm

　　○8Transfer speed：0.5~5m/min

　　○9Efficiency: 15 kg per hour

　　○10Hourly sterilization： 140kg-250kg

　　○11Control: ordinary button, can also be added to the infrared temperature control, PLC programming control device

　　○12Microwave leakage: according to the national GB10436-89 standard (GB = 5mw/cm2)

　　Comply with GMP equipment certification standards．
　　Oral nutrition health care products are rising in recent years, the bulk liquid oral liquid with microwave heating equipment for sterilization. But in oral liquid sterilization and bottling will again contamination. In general, the refined oral liquid can be disposable sterilized in the bottling. Using traditional heating sterilization sterilization temperature is low, not up to high temperature sterilization; sterilization will make the efficacy of oral liquid, nutritional composition and color, aroma and taste is affected, but also easy to cause the bottle burst, oral liquid loss. By 20 kW microwave sterilization equipment for sterilization of oral liquid, reaction time 2~3 minutes, temperature 70~85, processing capacity of 500 liters per hour (10 ml / bottle). All the indicators qualified by microwave sterilization after oral liquid, placed in room temperature for 18 months, were all in line with national health standards. Maintain the original oral liquid nutrition, good taste. In addition by microwave Sterilization also avoids the occurrence of precipitation in the oral solution by conventional thermal sterilization．
