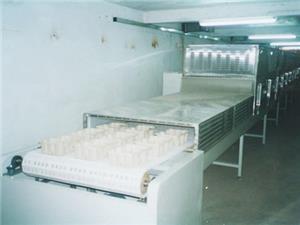

RD—150HTMicrowave drying equipment for paper paper tube

　　Main technical parameters:

　　○1Product model：RD—150HT

　　○2Power input: three-phase five wire380±10% , 50Hz±1%

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤220KVA

　　○5Microwave output power：≤150KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：18800×1600×1750 mm

　　○7Inlet and outlet height：90mm

　　○8Chain plate width：900mm

　　○9transmission speed：0.5～5m/min

　　○10Water efficiency: about 150 kg per hour

　　○11Control: ordinary button type, can add PCL, man-machine interface control, temperature control, monitoring device

　　○12Microwave leakage: in line with national GB10436-89 standards(National standard≤5mw/cm2)

　　Accord with national GB5226 electrical safety standard

　　○13work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Mainly used for all kinds of paper products, food, food, soybean, tea, agricultural and sideline products, Chinese herbal medicine, high nutrition, chemical material fast drying, insecticidal, bactericidal, fixing, deodorization, catalysis, extraction, puffing and arc mildew preservation. The transformation of traditional technology application of microwave technology, we must focus on economic benefits some early. The failure of the project, the main is not a technical problem, but the economic benefit is not good enough. The application of microwave energy equipment is a high-tech product. Through nearly twenty years of efforts, China"s microwave power equipment development and production level has been greatly improved, to improve the quality of customer service, cost reduction, service protection, so that the application of microwave energy equipment users in recent years, a trend of accelerated growth.
