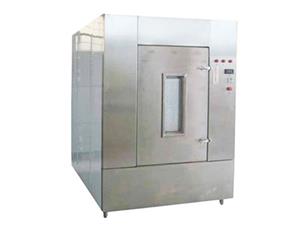

RD—12HFMicrowave drying equipment for leather

　　Main technical parameters:

　　○1Product model：RD—12HF

　　○2Power input: three phase380±10% ,50HZ;

　　○3working frequency： 2450MHz±50MHz

　　○4Rated input apparent power：≤18KVA

　　○5Output microwave power：≤12KW（Adjustable power）

　　○6Overall dimensions (L * w * h)：1250×1200×2100 mm

　　○7Internal diameter×high：Φ800×1200 mm(Dial two)

　　○8Drying efficiency: 12Kg per hour

　　○9Time controller, "hours, minutes, seconds" arbitrary adjustable

　　○10Control: ordinary button control, temperature control, monitoring device

　　○11Microwave leakage: in line with national GB10436-89 standards(National standard≤5mw/cm2)

　　Comply with GB 5226 electrical safety standard

　　○12work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas
　　Microwave is an electromagnetic wave of high frequency, the frequency range in the application of 300MHz-300GMHz. microwave technology provides a new heating method for industrial processing, the mode of heating in industry, agriculture, food, medical, chemical, building materials, textile, leather and other aspects have to be widely used.
　　After microwave treatment of leather can sterilization, mildew, greatly prolong the storage period of leather. The same microwave desulfurization of glass products, textile yarn, fabric drying, dehydration and mildew treatment has good effect and provides a new way for the drying process of these industries.
