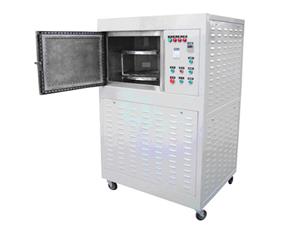

RD—4HAExperimental microwave converter

　　Main technical parameters：

　　○1　Product model：RD—4HA

　　○2　power input： Three-phase380±10% ,50HZ

　　○3　working frequency： 2450MHz±50MHz

　　○4　Rated input apparent power：≤6KVA

　　○5　Output microwave power：≤4KW（Adjustable power）

　　○6　Overall dimensions (L * w * h)：1050×950×1650 mm

　　○7　Internal diameter：Φ550 mm

　　○8　Rotary speed：8turn/min

　　○9　Drying water extraction efficiency: hourly4Kg

　　○10　Time controller, "hours, minutes, seconds" arbitrary adjustable

　　○11　Microwave leakage: in line with national GB10436-89 standards(National standard≤5mw/cm2)

　　Comply with GB 5226 electrical safety standard

　　○12　work environment：－5~40℃，relative humidity≤80%

　　There is no corrosive gas, conductive dust and explosive gas

　　PZ-4HA industrial microwave equipment company development model, designed for scientific research units, laboratories, and the design of the new product development of colleges and universities. This equipment is made of full stainless steel heater, imported microwave transmitting tube. Load resistant capability is strong, durable; unique within the polygon cavity, can make more uniform microwave reflection; stainless steel rotary turntable, its use wide range, stable performance, beautiful appearance. In the food and pharmaceutical industry, can be used for different products for fast drying and sterilization processing, which greatly shorten the experiment time.

　　For low temperature drying and heat sensitive material. In the chemical industry, the powdery, granular, quick drying treatment of massive organic or inorganic materials, can also be equipped with infrared temperature measuring device, the combustion synthesis of the development and experiment of rare earth materials. Such as mannitol and nano material drying, drying and sintering of nickel hydroxide powder, ceramic honeycomb calcined alumina, metal forming, tantalum carbide, cobalt acid lithium battery materials burning synthesis. These products have been through the application of experiments in industry. It can greatly shorten the production cycle, improve the quality of the products.

　　Since the products into the market, many colleges and universities and scientific research units have been used, and praise. Such as the South China University of Technology Department of food and Chemical Engineering Department of Zhongshan University, Shenzhen Leitian power technology development department, special microwave equipment Jiangmen Changshun chemical company limited battery materials development and application of.PZ-4HA experiment, it will become a basic tool of modern experimental research real!
